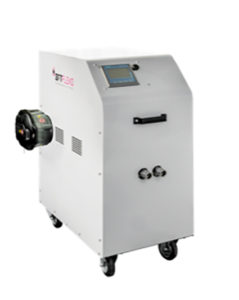

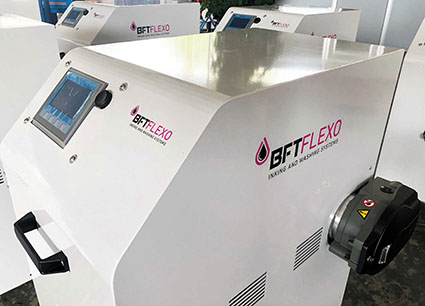

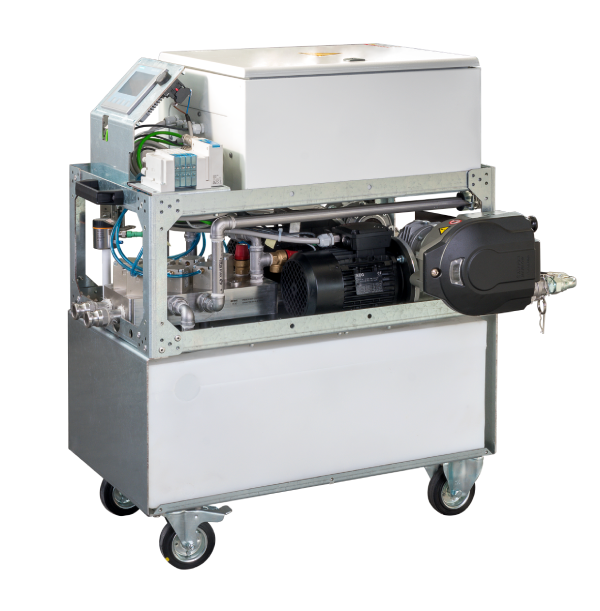

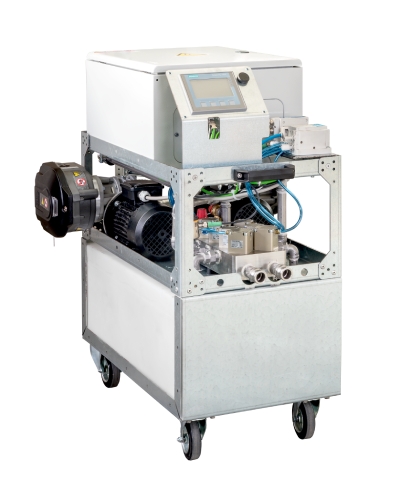

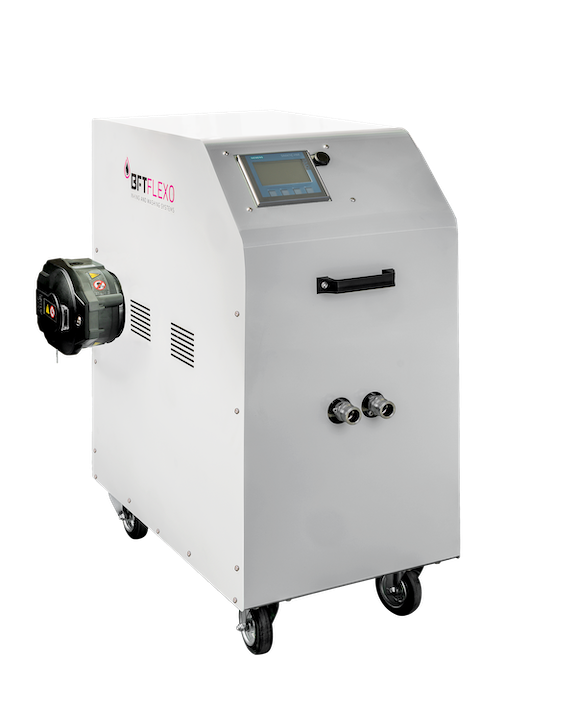

GT - PP
- ELECTRIC PERISTALTIC DELIVERY PUMP
- ELECTRIC PERISTALTIC RETURN PUMP
- PLC CONTROLLED
- MANIFOLD WITH 7 BUILT-IN VALVES
- INDUSTRY 4.0
Benefits
The GT x PP series stands out for its configuration with a twin peristaltic pump system controlled by inverters, a technology that enables precise handling of even high viscosity inks and coatings, completely preventing foam formation inside the doctor blade chamber. Thanks to this system, the GT x PP ensures stable and controlled ink flow throughout every stage of the process, making it an ideal solution for high-complexity applications. Additionally, the use of electric pumps instead of pneumatic ones leads to a significant reduction in energy consumption, helping to lower operating costs and reduce the environmental impact of the system. In this system, maintenance is limited solely to replacing the peristaltic tube.
Technical Features

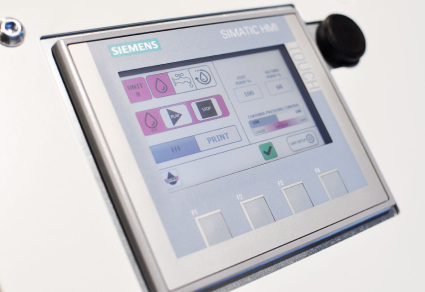

Touch Screen
The touch screen allows for easy for easy and intuitive use and immediate settings, making it possible to standardise pump adjustments and many other parameters.
Sensors
The sensor-ready system enables monitoring of air pressure, pH, viscosity, and temperature, ensuring precise and fully automated management.
BFT FLEXO Manifold
The BFT FLEXO manifold, made from a single stainless steel component, is the heart of the system, ensuring robustness, reliability, and easy maintenance.
Internal tank to save 50% of water
The integrated tank allows for 50% water savings while maintaining the same washing quality, eliminating the need for an external tank.
PLC SIEMENS
The PLC, configured to interface with the printing machine, is equipped with an integrated teleservice system to ensure remote support.
Algorithm for the internal washing of the system
to clean each component and avoid blocking and malfunctioning
PP and STAINLESS pipes
The welded pipes in polypropylene and stainless steel are designed to guarantee total leak-proof performance and maximum compatibility with solvents.
Peristaltic pump
The peristaltic pump reduces pulsation to improve print quality, does not contaminate the product, allows for scheduled maintenance, and consumes less than pneumatic pumps.
Sectors of Reference
Flexo | Offset | Coating

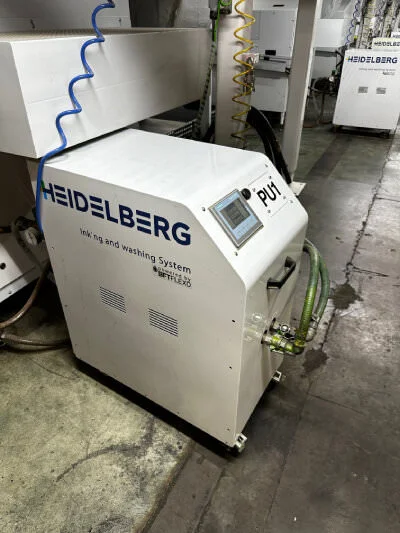

GT - PM
- ELECTRIC PERISTALTIC DELIVERY PUMP
- PNEUMATIC MEMBRANE RETURN PUMP
- PLC CONTROLLED
- MANIFOLD WITH 7 BUILT-IN VALVES
- INDUSTRY 4.0
Benefits
The GT x PM series features a hybrid configuration: a peristaltic pump controlled by an inverter for ink delivery, combined with a digitally frequency-regulated pneumatic pump for return flow. This setup has become a preferred choice for water-based ink printing, ensuring foam free operation in the doctor blade chamber and delivering an optimal balance between performance and cost-effectiveness.
Technical Features
Touch Screen
The touch screen allows for easy for easy and intuitive use and immediate settings, making it possible to standardise pump adjustments and many other parameters.
Sensors
The sensor-ready system enables monitoring of air pressure, pH, viscosity, and temperature, ensuring precise and fully automated management.
BFT FLEXO Manifold
The BFT FLEXO manifold, made from a single stainless steel component, is the heart of the system, ensuring robustness, reliability, and easy maintenance.
Internal tank to save 50% of water
The integrated tank allows for 50% water savings while maintaining the same washing quality, eliminating the need for an external tank.
PLC SIEMENS
The PLC, configured to interface with the printing machine, is equipped with an integrated teleservice system to ensure remote support.
Algorithm for the internal washing of the system
to clean each component and avoid blocking and malfunctioning
PP and STAINLESS pipes
The welded pipes in polypropylene and stainless steel are designed to guarantee total leak-proof performance and maximum compatibility with solvents.
Peristaltic pump
The peristaltic pump reduces pulsation to improve print quality, does not contaminate the product, allows for scheduled maintenance, and consumes less than pneumatic pumps.
Sectors of Reference
Flexo | Offset

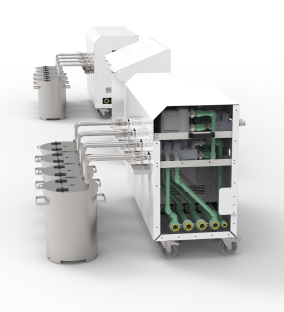

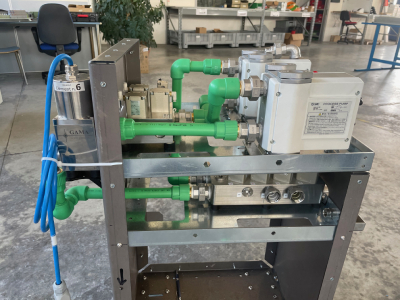

GT - MM
- PNEUMATIC DIAPHRAGM DELIVERY PUMP
- PNEUMATIC DIAPHRAGM RETURN PUMP
- MANIFOLD WITH 7 BUILT-IN VALVES
- MANIFOLD WITH 3 BUILT IN VALVES
- PLC CONTROLLED
- INDUSTRY 4.0
Benefits
The GT x MM series features a dual pneumatic pump configuration, both digitally frequency-controlled by PLC, ensuring a constant yet adjustable and reliable ink flow under all operating conditions. It is the preferred solution for solvent-based ink printing, where durability and consistency are essential, but its versatility also makes it well-suited for water-based and UV inks. Robust, intuitive, and high performing, the GT x MM stands out as a perfect balance of reliability and adaptability, making it an excellent choice for production lines handling multiple ink systems.
Technical Features
Welded polypropylene and stainless steel pipes:
Designed to ensure complete leak-proof operation and maximum compatibility with solvents.
Centralized Touch Screen
For easy and intuitive use, allowing the standardization of pump settings and many other parameters.
ATEX pneumatic pumps controlled by PLC:
Positioned at the top for quick replacement and managed by the PLC to define the required ink flow.
BFT FLEXO 3V Manifold:
A necessary component for internal cleaning functions and ink recovery from both supply and return lines. Internal cleaning allows thorough washing of all components and optional devices, such as viscometer and heat exchanger, without passing through the doctor blade chamber.
BFT FLEXO 7V Manifold:
a single stainless steel component that forms the heart of the system, ensuring robustness, reliability, and ease of maintenance.
Sectors of Reference
Flexo | Offset

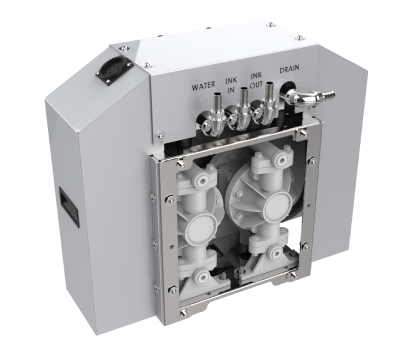

GT - CORR
- PNEUMATIC DIAPHRAGM DELIVERY PUMP
- PNEUMATIC DIAPHRAGM RETURN PUMP
- MANIFOLD WITH 7 BUILT-IN VALVES
- MANIFOLD WITH 3 BUILT IN VALVES
- PLC CONTROLLED
- INDUSTRY 4.0
Benefits

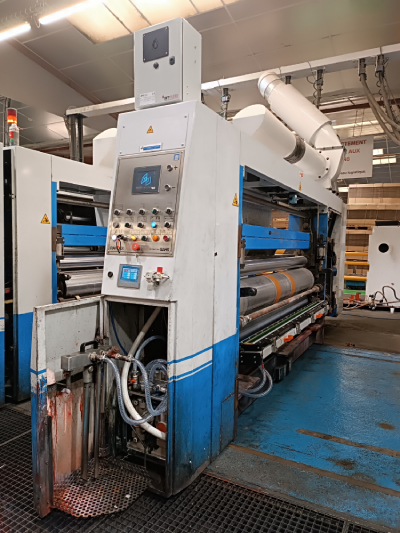

The GT Corr series is specifically designed for the corrugated board industry, featuring a dual pneumatic pump system, both digitally PLC-controlled, to ensure an adjustable stable and reliable flow under all working conditions.
Engineered to deliver maximum efficiency at a competitive price, it offers a practical solution to enhance performance without exceeding budget constraints. This system allows for a complete transformation of operator routines at the press, enabling faster, more effective wash cycles and significantly reducing downtime and manual effort.
Technical Features
Pneumatic pumps controlled by the PLC
to set the required ink flow.
Quick pneumatic connection
For fast maintenance.
BFT FLEXO 7V-CORR Manifold:
A single stainless steel component that forms the heart of the system, ensuring robustness, reliability, and easy maintenance.
Sectors of Reference
Flexot
