Sitexco Plus Laser Anilox Cleaning System

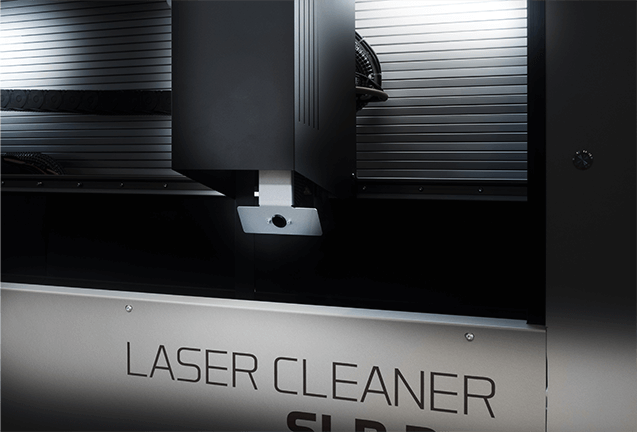

Automated Laser Cleaning for More Consistent Roller Performance. The Sitexco Plus laser anilox cleaner is designed to make roller cleaning faster, safer and more consistent. Using patented laser technology, Sitexco Plus removes inks, coatings, adhesives, glues and varnishes without chemicals or cleaning consumables.

The system automatically adjusts cleaning parameters according to the specifications of each roller, helping produce repeatable results with less dependence on operator skill. This streamlined approach can reduce press downtime, lower operating costs and provide a more reliable cleaning process while helping protect valuable roller surfaces.

Request a Sitexco Plus Consultation

Contact Us

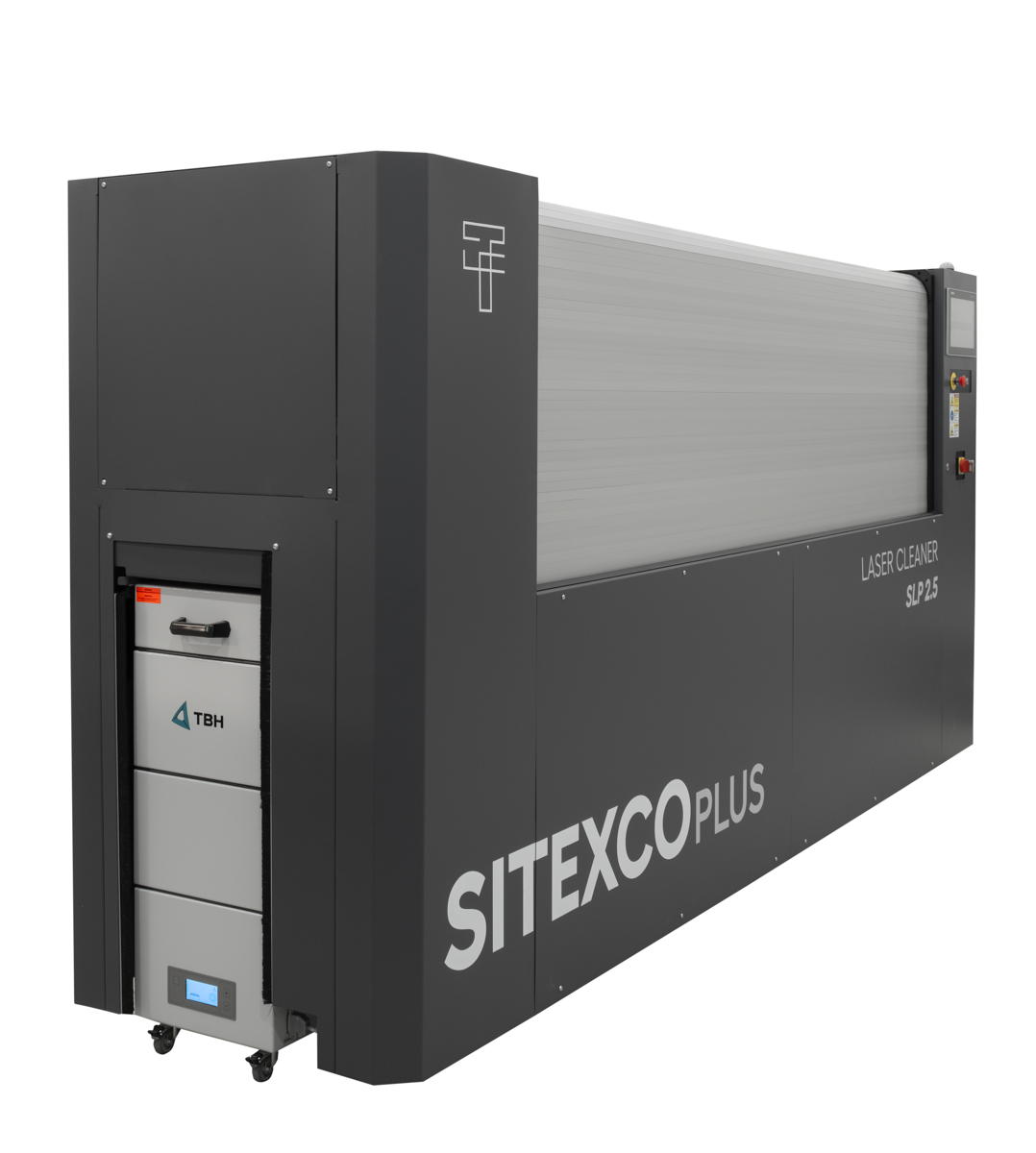

sitexco plus machine

Key Benefits

  • Faster cleaning and reduced press downtime
  • Chemical-free and consumable-free cleaning
  • Non-contact technology that helps protect roller geometry
  • Repeatable results with less operator dependency
  • Cleaning traceability and reporting
  • Predictive maintenance options
  • Compatibility with ceramic, tungsten carbide, gravure and chrome rollers

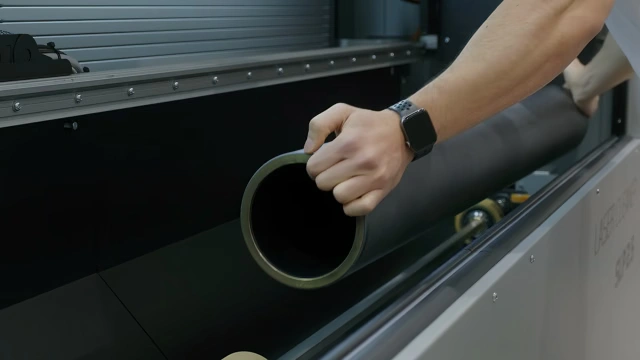

Optional Integrated Microscope & Predictive Maintenance

The integrated microscope transforms the cleaning process into a complete roller control system. It enables automated inspection, cleaning validation and condition monitoring directly from the machine, helping customers achieve more consistent results and better control over roller performance.

Main Advantages

  • Automated inspection and cleaning validation
  • Closed-loop cleaning cycle with zero operator intervention
  • Automatic reporting and traceability
  • Predictive maintenance and condition monitoring
  • Available on new machines or as a retrofit
  • Patent pending

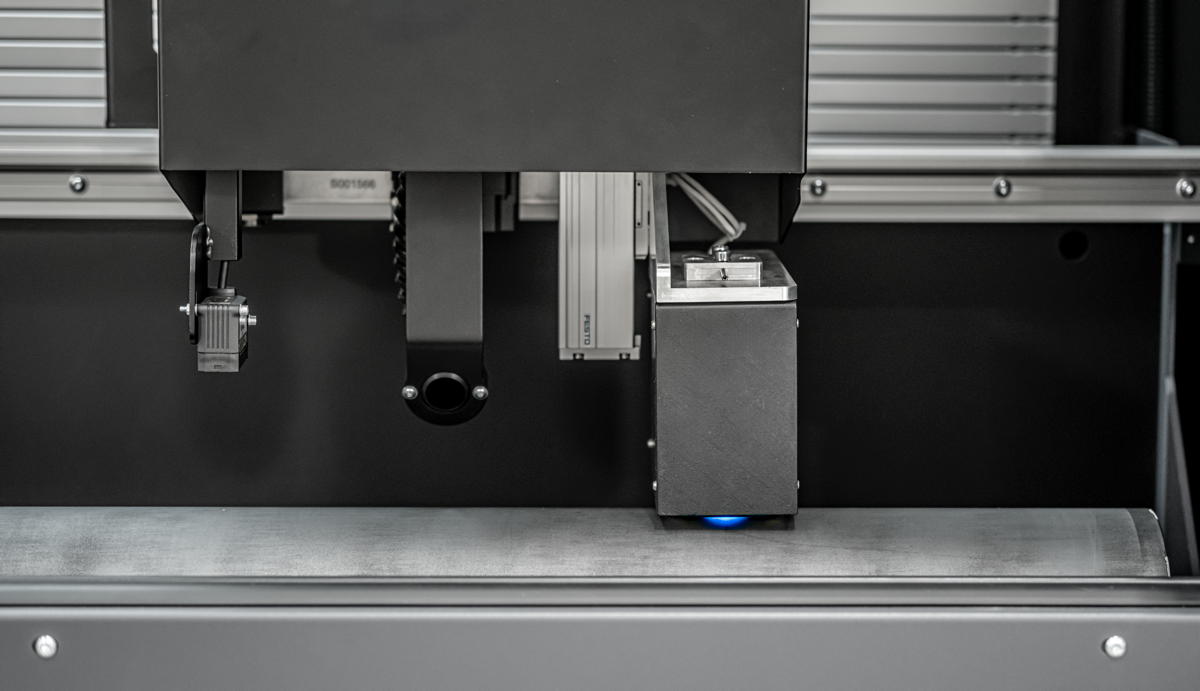

sitexco plus laser cleaner

Traceability, Reporting & Industry 4.0 Connectivity

Modern pressrooms increasingly depend on reliable production data. Sitexco Plus is designed to support that environment with standard traceability and reporting capabilities along with Industry 4.0-ready IoT connectivity.

Standard Digital Capabilities

  • Traceability and reporting software

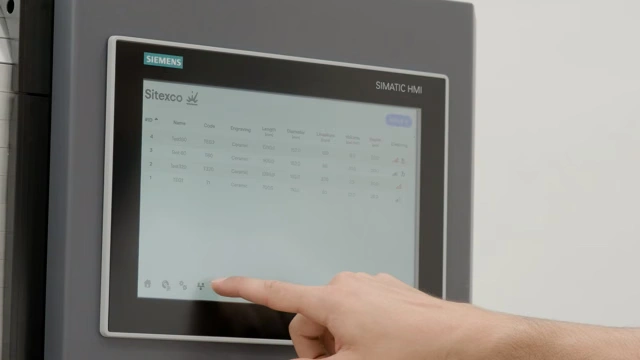

  • Internal inspection camera
  • Industry 4.0-ready IoT connectivity
  • Optional Production Management Tools
  • Pending Cleaning List

The Pending Cleaning List software can help production teams organize rollers waiting to be cleaned and incorporate roller cleaning into production planning.

Laser Supervisor

Laser Supervisor software provides additional remote monitoring and traceability capabilities.

RFID Smart Roller Identification

An optional RFID reader can be added for compatible smart rollers, helping further automate roller identification and cleaning management.

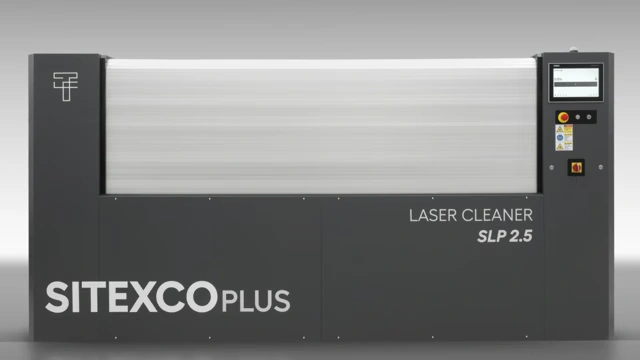

See Sitexco Plus in Action

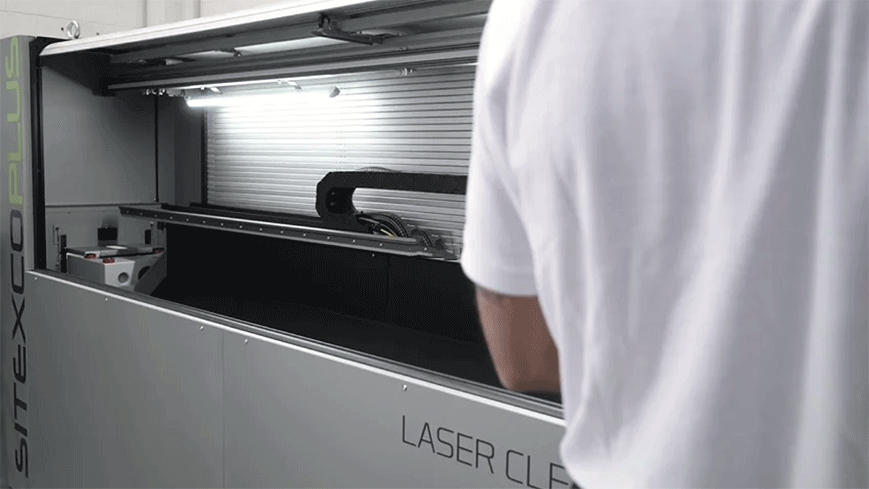

See Sitexco Plus in Action Watch the Sitexco Plus laser anilox cleaning system at work and see how automated, non-contact laser technology removes ink, coatings and other contaminants from roller surfaces without chemicals or cleaning consumables. The video demonstrates how Sitexco Plus brings greater consistency, control and efficiency to roller cleaning while helping reduce operator dependency and press downtime.

Available Sitexco Plus Models

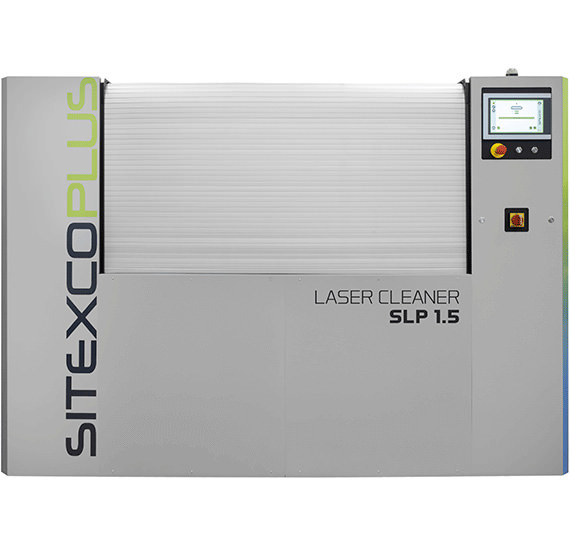

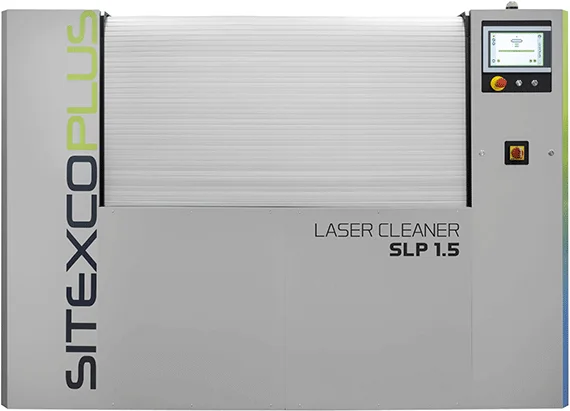

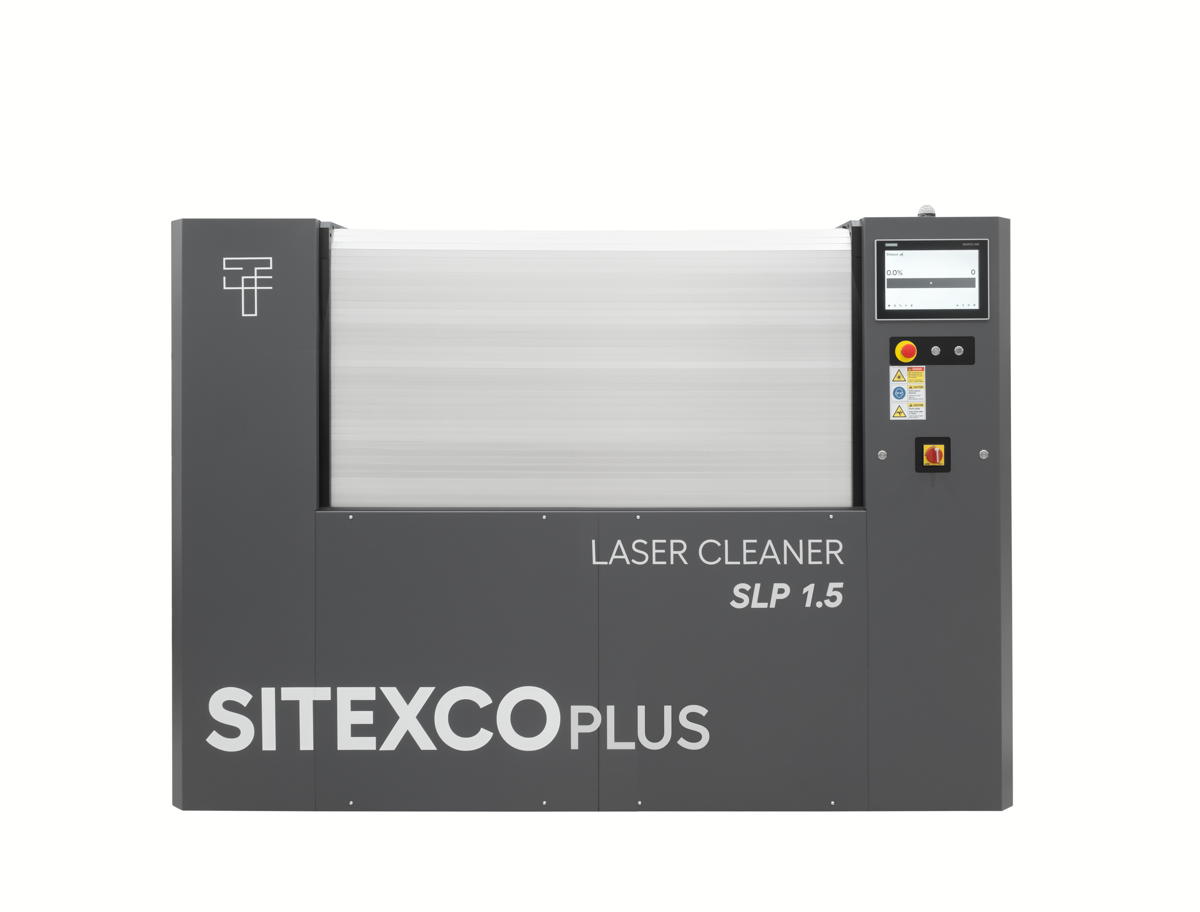

Maximum Clean Length 1,500 mm / 59.05”
Maximum Roll Diameter 300 mm / 11.81”
Minimum Roll Diameter 80 mm / 3.15”
Weight Capacity 200 kg / 441 lb
Power Consumption 1.9 kW
Electrical Supply 208–550 VAC
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning Up to 2

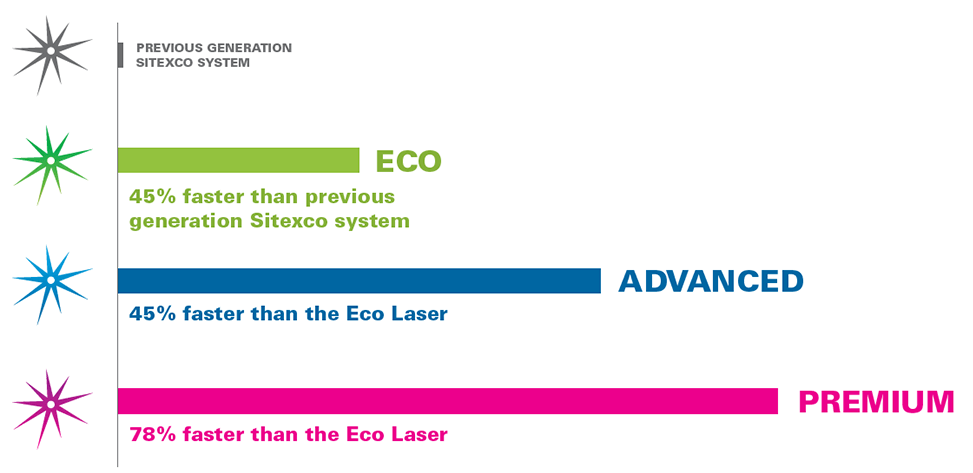

Laser Options Eco/Advanced/Premium

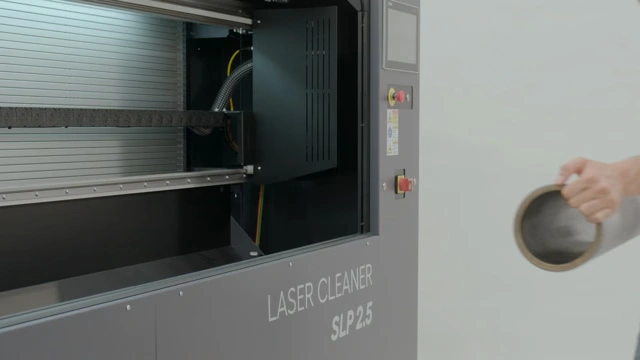

Automatic Doors checkmark
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark

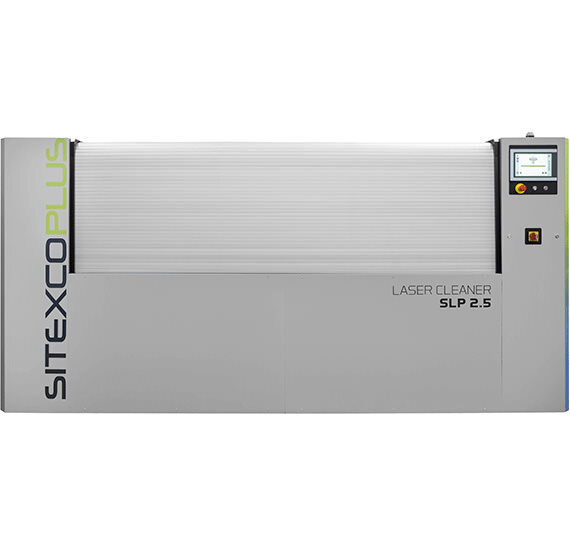

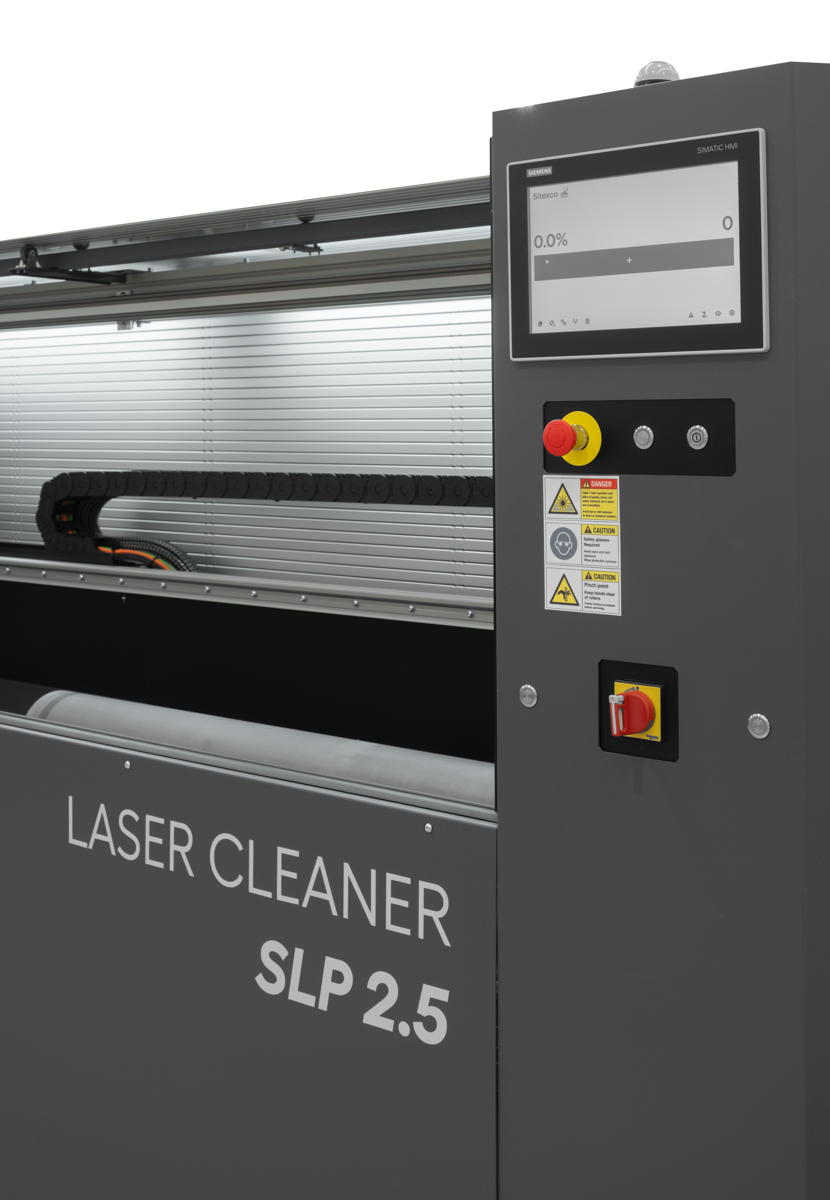

Maximum Clean Length 2,500 mm / 98.5”
Maximum Roll Diameter 300 mm / 11.81”
Minimum Roll Diameter 80 mm / 3.15”
Weight Capacity 250 kg / 551 lb
Power Consumption 1.9 kW
Electrical Supply 208–550 VAC
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning Up to 4
Laser Options Eco/Advanced/Premium
Automatic Doors checkmark
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark

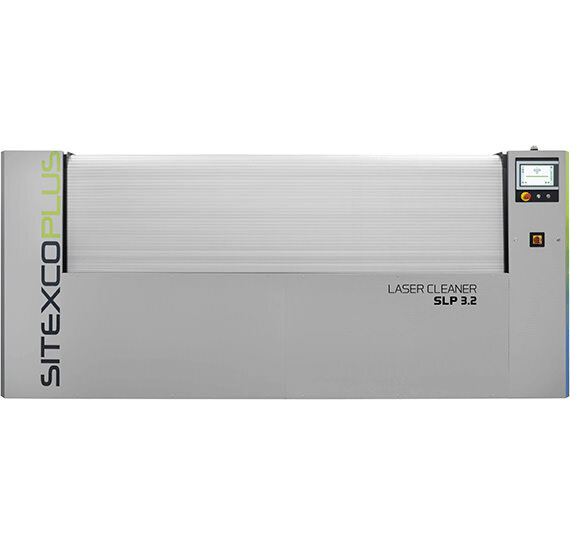

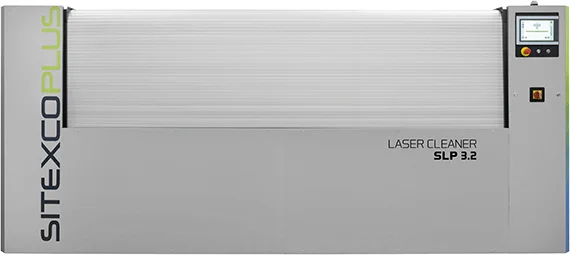

Maximum Clean Length 3,200 mm / 125.9”
Maximum Roll Diameter 300 mm / 11.81”
Minimum Roll Diameter 80 mm / 3.15”
Weight Capacity 300 kg / 661 lb
Power Consumption 1.9 kW
Electrical Supply 208–550 VAC
Frequency 50/60 Hz
Air Supply No
Number of Aniloxes 1
Multi Roll Cleaning Up to 4
Laser Options Eco/Advanced/Premium
Automatic Doors checkmark
Internal Camera checkmark
Diamater Sensor checkmark
IoT Capabilities checkmark

Is Sitexco Plus Right for Your Pressroom?

Sitexco Plus is designed for printers and converters looking for greater control over roller cleaning and maintenance.

Consider Sitexco Plus if your operation is looking to:

  • Reduce time spent cleaning anilox and specialty rollers
  • Reduce press downtime associated with roller cleaning
  • Move away from chemical-based cleaning processes
  • Improve cleaning consistency between operators
  • Protect roller geometry through non-contact cleaning
  • Document cleaning activity
  • Validate cleaning results
  • Monitor roller condition
  • Introduce predictive maintenance into roller management

Find the Right Sitexco Plus System for Your Roller Inventory

Talk with Eaglewood Technologies about your roller dimensions, inventory and production requirements. We can help you evaluate the available Sitexco Plus configurations and identify the right approach for your operation.

Request a Sitexco Plus Consultation

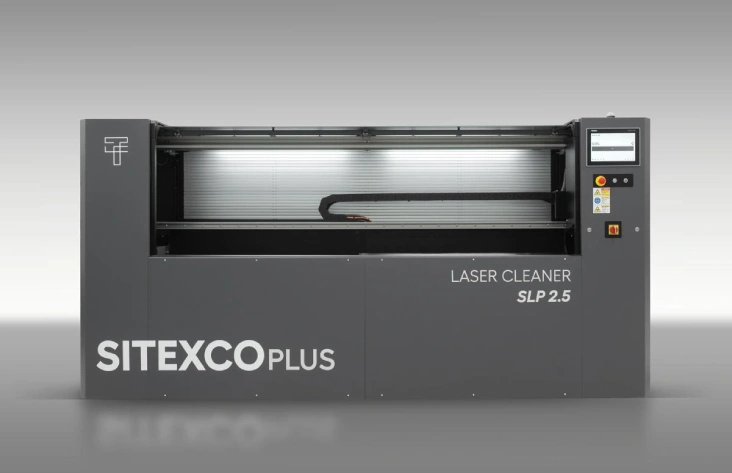

Sitexco printer
