Ultrasonic Cleaning Station - Model US-500

The US-500 is a compact ultrasonic cleaning station designed for companies who don’t have many narrow web printing press parts to clean but still desire an environmentally friendly and cost-effective solution. Due to low emissions, no air evacuation is necessary, allowing the system to be installed in any location without special protective measures.

Ultrasonic Cleaning Station - Model US-500

Nanovis Ultrasonic cleaning station US 500

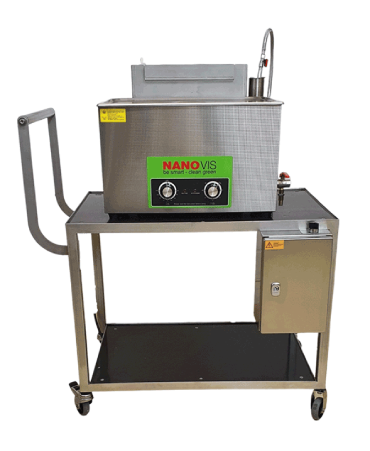

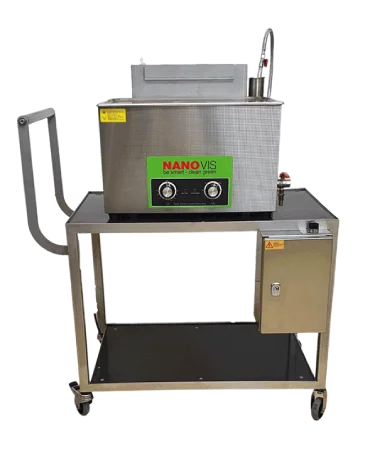

The ultrasonic cleaning station US-500 is a compact workstation, which can be easily moved thanks to the four rollers. The unit is designed for companies that have few parts to clean per day and are looking for an environmen-tally friendly and cost-effective solution.

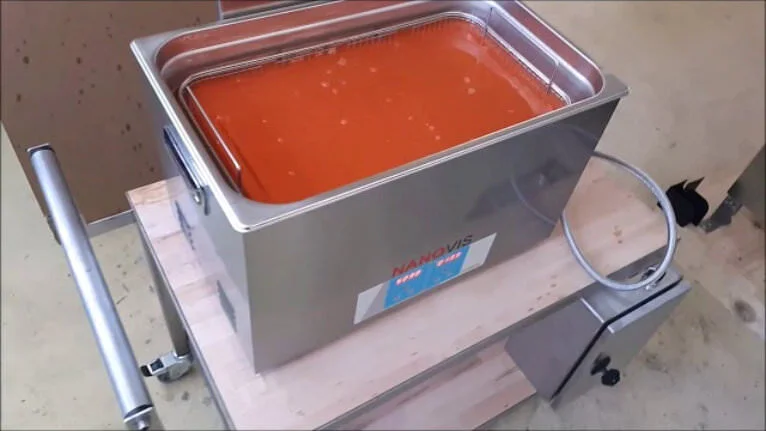

The US-500 can easily be moved thanks to four attached casters. An integrated flow brush allows for manual parts cleaning; depending on the curing degree of the ink, a cleaning cycle lasts between 15 – 30 minutes. The non-volatile cleaning agent’s properties allow detached ink particles to clump together during standstill periods and settle into a basin at the bottom, which is emptied occasionally for sludge removal.


  • Trolley External Dimensions (LxWxH):  920 x 500 x 1100 mm
  • Ultrasonic Bath Internal Dimensions (LxWxH):  500 x 300 x 200 mm
  • Stainless Steel Basket (LxWxH):  450 x 260 x 130 mm
  • Ultrasonic Output:  500 watt / 40 kHz
  • Electric Supply:  230 VAC / 50 Hz
  • Filling Capacity:  19 liters (approximate)

Interested in finding out how the US-500 can boost your label & narrow web cleaning? Contact an Eaglewood Technologies representative for more information today!
