Sitexco Label L20 System

Laser Anilox Cleaner for Narrow-Web Printers

Specifically for the Narrow-Web Printer

Advantages

  • Designed using award-winning Sitexco+ technology
  • Cleaning cycle times between 5 and 15 minutes
  • Most sustainable cleaning technology
  • No water or chemicals needed
  • Does NOT generate any waste
  • No removal of bearings or gears
  • Superior cleaning results

Fastest and Most Effective Cleaning

Cleans

  • One narrow web anilox at a time using no chemicals, water, or media
  • Any type of ink chemistry: water-based, energy curable (UV/LED),
    solvent-based, adhesives, varnishes, and coatings

For Quotes or Additional Information

Contact Us

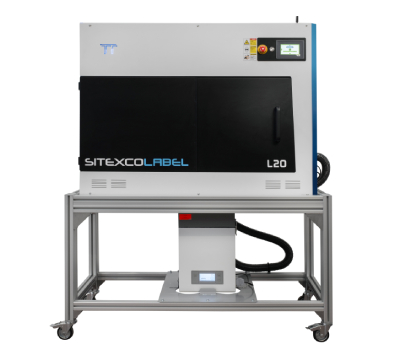

Sitexco Label L20 front on stand

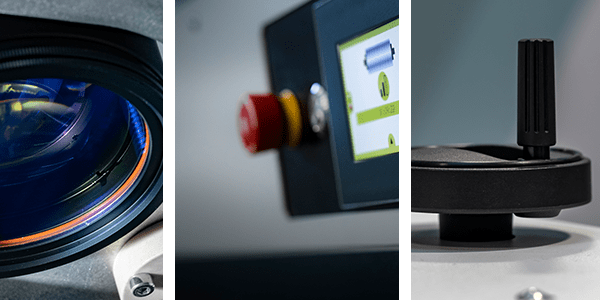

Three images of Sitexco

cloud icon

Table Top Design

Lightweight machine works on a table top or with the supporting table accessory.

cleaning icon

Deep Cleaning

The intelligent laser ablates any ink chemistry leaving rolls, ceramic, or chrome sparkling clean.

sustainability icon

Sustainability

The only truly sustainable roll cleaning technology on the market, using only 1.5 kw of power per hour (less than your household dishwasher).

automated icon

Automation

Simple to operate by even your newest employees.

safety icon

Safety

Safe for your operators, safe for your aniloxes, and safe for the environment.

telegram smartphone icon

State-Of-The-Art-Technology

Cutting-edge innovation in the most economical package available.



Enhanced Design


Sitexco Label L20 is an evolution of the L10 system, which incorporates the improvements suggested by our customers, to supply a system that really meets the needs of the narrow web sector:

  • Cleaning programs based on award-winning SLP systems
  • Multiple cleaning programs
  • Automated features for ease of use
  • Filtration system design for laser ablated particulates

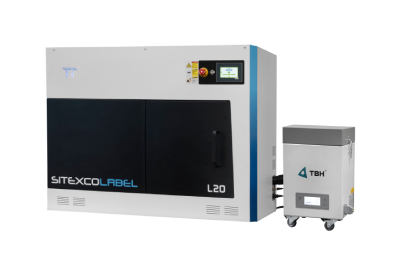

Sitexco Label L20 front no stand

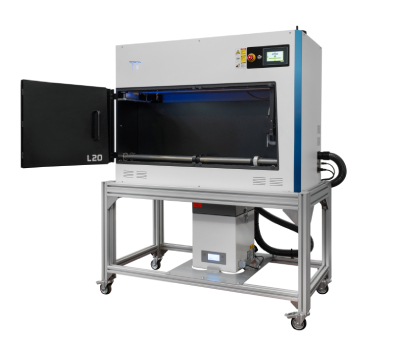

Sitexco Label L20 angle on stand door open

Machine Dimensions

  • Length: 48.62”
  • Height: 40.16”
  • Width: 22.64”
  • Weight: 353lbs

Specifications

  • Max. Roll Diameter: 5.52”
  • Min. Roll Diameter: 1.38”
  • Max. Cleaning Length: 33.46"
  • Max. Roller Weight: 66lbs
  • Power Consumption: 1.5kw
  • 110v/230v (Single or Dual Phase)
  • No Compressed Air
  • No Water
