Sitexco Label L20 System

Laser Anilox Cleaner for Narrow-Web Printers

Specifically for the Narrow-Web Printer

Advantages

Designed using award-winning Sitexco+ technology
Cleaning cycle times between 5 and 15 minutes
Most sustainable cleaning technology
No water or chemicals needed
Does NOT generate any waste
No removal of bearings or gears
Superior cleaning results

Fastest and Most Effective Cleaning

Cleans

One narrow web anilox at a time using no chemicals, water, or media
Any type of ink chemistry: water-based, energy curable (UV/LED),
solvent-based, adhesives, varnishes, and coatings

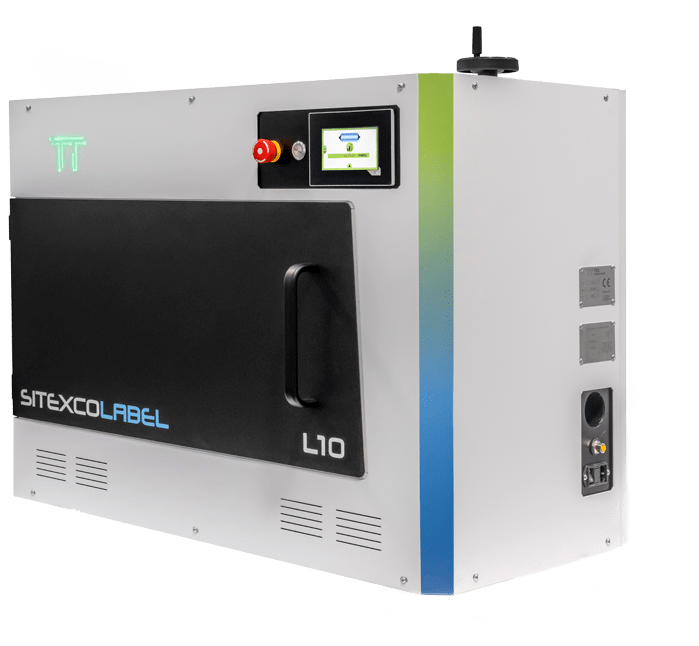

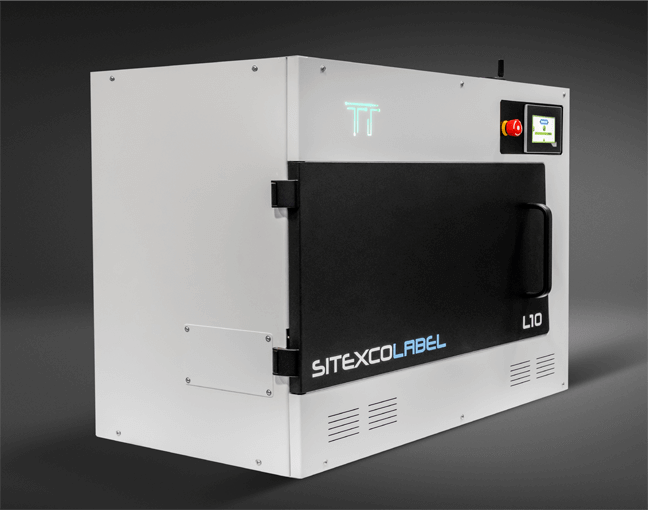

Sitexco Label L20 front on stand

Three images of Sitexco

Table Top Design

Lightweight machine works on a table top or with the supporting table accessory.

Deep Cleaning

The intelligent laser ablates any ink chemistry leaving rolls, ceramic, or chrome sparkling clean.

Sustainability

The only truly sustainable roll cleaning technology on the market, using only 1.5 kw of power per hour (less than your household dishwasher).

Automation

Simple to operate by even your newest employees.

Safety

Safe for your operators, safe for your aniloxes, and safe for the environment.

State-Of-The-Art-Technology

Cutting-edge innovation in the most economical package available.

Enhanced Design

Sitexco Label L20 is an evolution of the L10 system, which incorporates the improvements suggested by our customers, to supply a system that really meets the needs of the narrow web sector:

Cleaning programs based on award-winning SLP systems
Multiple cleaning programs
Automated features for ease of use
Filtration system design for laser ablated particulates

Sitexco Label L20 front no stand

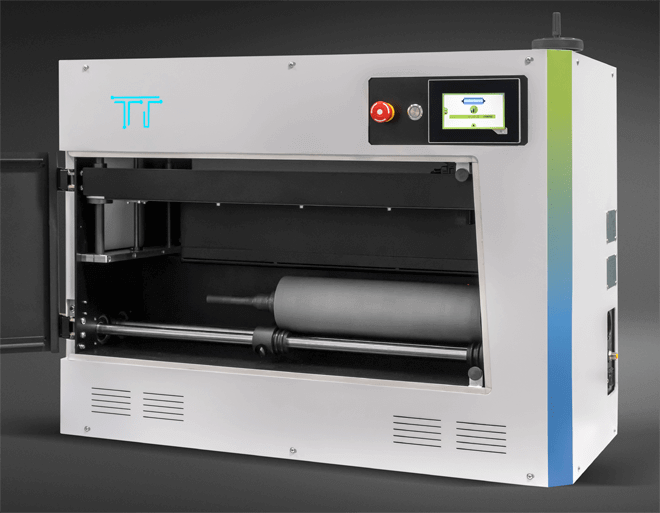

Sitexco Label L20 angle on stand door open

Machine Dimensions

Length: 48.62”
Height: 40.16”
Width: 22.64”
Weight: 353lbs

Specifications

Max. Roll Diameter: 5.52”
Min. Roll Diameter: 1.38”
Max. Cleaning Length: 33.46"
Max. Roller Weight: 66lbs
Power Consumption: 1.5kw
110v/230v (Single or Dual Phase)
No Compressed Air
No Water
